Structure
25 mm heat-treated 40Cr front axle, reinforced frame and high-stress connection points, and automotive-grade double-row front wheel bearings.

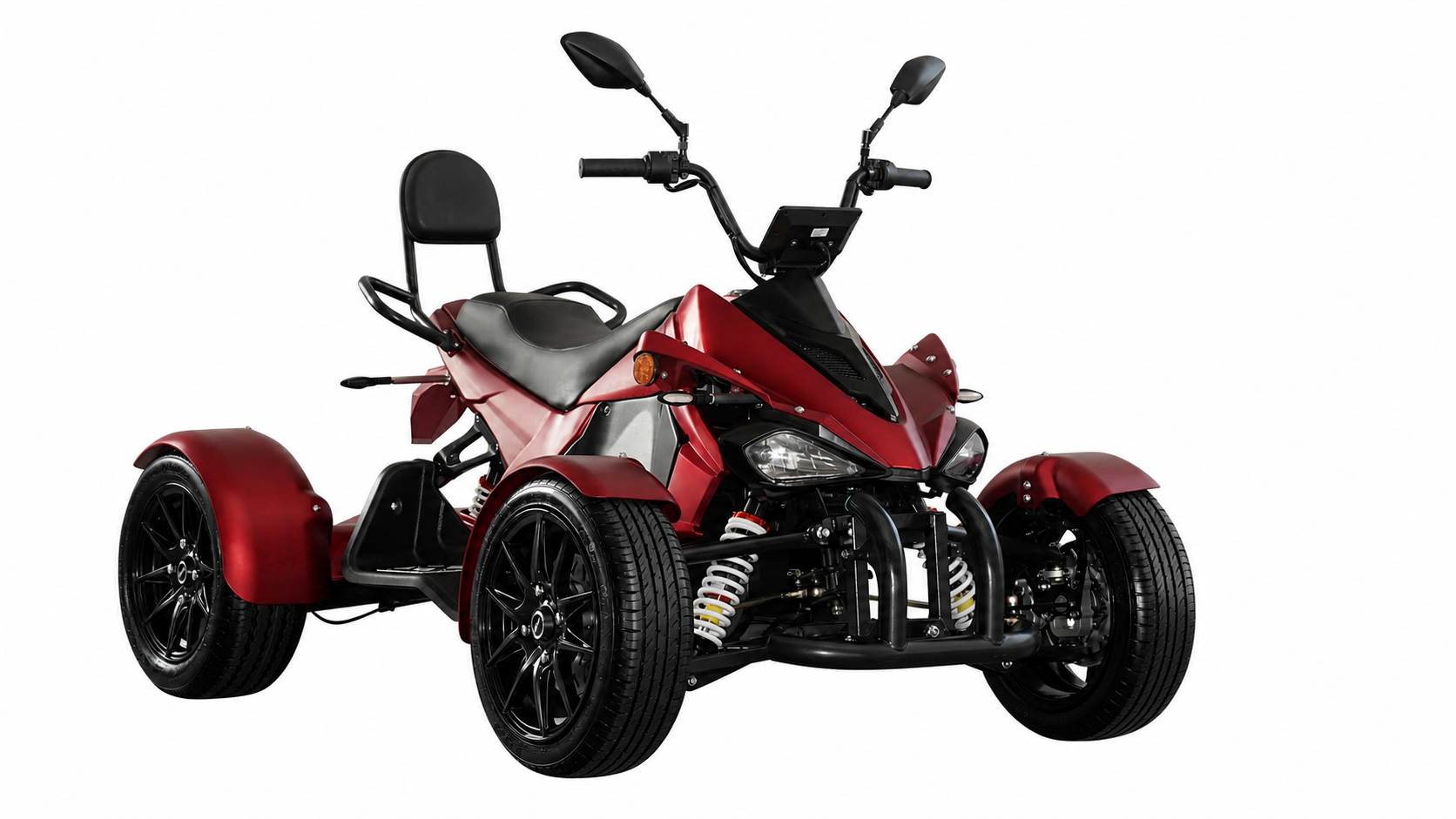

DOBO E9 · L7e-A1Road-oriented electric mobility.
The E9 combines a 72 V electric powertrain with an L7e-A1 approved configuration for distributors, specialist fleets and leisure-mobility partners evaluating lower-noise daily operation.
- Maximum speed
- 90 km/h
- Stated range, up to
- 110 km*
- Stated load
- 200 kg
- Charging time
- 8–10 h
*Actual range depends on speed, payload, terrain, temperature, battery condition and other operating factors.
Engineering & function
Built around practical use.
- EEC/COC Euro 5 L7e-A1 homologation platform for the certified configuration
- Revised frame, axle, bearings and critical connection points
- Independent front and rear brake circuits to reduce single-point braking risk
- Automotive-grade radial tyres with a 4 x 114.3 mm wheel bolt pattern
- Independent rear trailing arms and a Watt-link arrangement
- Integrated onboard charger for convenient daily charging
Braking
Independent front and rear brake circuits; four-wheel foot-brake control; mechanical parking brake; revised cable distribution and optional handbrake configuration.
Suspension
Independent left and right rear trailing arms, individual rear shocks and Watt-link structure. Two-way damping with 16 mm shock absorber rods.
Wheels & tyres
Automotive-grade steel-belted radial tyres: front 155/50R14 and rear 195/50R13C. Automotive-standard 4 x 114.3 mm wheel bolt pattern.
Durability details
Waterproof plugs for exposed frame openings, anti-loosening tabs on critical fasteners and 304 stainless-steel screws throughout.
Daily usability
LED instrument cluster, integrated charger and adjustable rear shock leverage ratio. Rear luggage box and mounting bracket optional.
Technical specifications

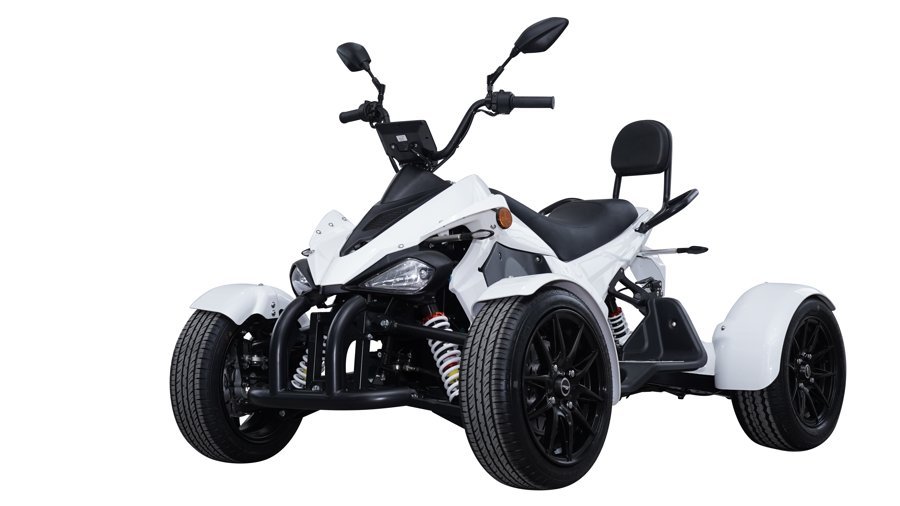

Request brochure — manual review →E9 at a glance.
- Vehicle category
- Electric ATV
- Homologation
- EEC/COC Euro 5, L7e-A1 type approved
- Approval number
- e49*168/2013*10053*01
- Dimensions
- 2,015 x 1,325 x 1,200 mm
- Motor
- 72V 4,000W brushless
- Battery
- 72V 117Ah lithium
- Maximum speed
- 90 km/h
- Reverse speed
- 15 km/h
- Stated range
- Up to 110 km*
- Charging time
- 8–10 hours
- Transmission
- Shaft drive, integrated rear axle
- Instrument
- LED cluster
- Front tyre / wheel
- 155/50R14 / 14 x 5.5 in
- Rear tyre / wheel
- 195/50R13C / 13 x 6 in
- Ground clearance
- 152 mm
- Seat height
- 760 mm
- Net / gross weight
- 260 kg / 305.3 kg
- Maximum stated load
- 200 kg
- Packing dimensions
- 1,780 x 1,140 x 830 mm
- Container loading
- 15 units / 20 ft; 39 units / 40 HQ
*Actual range depends on speed, payload, terrain, temperature, battery condition and other operating factors.
Available coloursMatte BlueNardo GreyMatte Wine RedShiny Black
Optional accessories include a rear luggage box and mounting bracket.
Specifications may change with ongoing product development. Confirm the final certified configuration before ordering.
Certified configuration
L7e-A1 homologation
- Platform
- EEC/COC Euro 5, L7e-A1 type approved
- Approval number
- e49*168/2013*10053*01
- Manufacturer of complete vehicle
- DOBO MOTORS LTD.
- Type / variant / version
- SPY E9 / 00 / 00
- Approved trade names
- DOBO, DOBORACING, SPYRACING and GECO
- Assembly plant
- Master (Jinhua) Vehicle Technology Co., Ltd.
DOBO MOTORS LTD. is identified as the manufacturer of the complete vehicle in the reviewed approval certificate. The public website uses the more conservative stated range of up to 110 km. Final registration, licensing requirements and permitted use depend on the certified configuration and destination-market rules.
Applications
Designed around real market use.
- Personal road mobility: short-distance travel and leisure, subject to local registration and licensing requirements.
- Resorts & leisure: holiday parks and destinations where reduced operating noise is preferred.
- Rental & tourism fleets: specialist vehicle-rental businesses and tourism operators.
- Private estates: transportation, inspection and general mobility on estates, campuses and managed properties.
- Electric powersports: a category for ATV, motorcycle and EV distributors between leisure powersports and road-oriented mobility.
Business support
More than the vehicle.
- Private-label branding and decal development
- Body colour and selected equipment configuration
- Accessory, packaging and documentation customisation
- Spare-parts planning and after-sales coordination
- Sample evaluation and container-order support
- Homologation-document coordination for the certified configuration
Warranty
Two years for the frame and battery; one year for the motor, controller and braking components. Final warranty terms are subject to the sales contract.
Two years for the frame and battery; one year for the motor, controller and braking components. Final warranty terms are subject to the sales contract.
Product and approval information is based on supplied product materials and reviewed certificates. Request the relevant catalogue or documentation. Confirm final specifications, approval scope and contractual terms before ordering.
